Konfigurasi Router OSPF Di Cisco Packet Tracer


 Konfigurasi Router OSPF Di Cisco Packet Tracer

Tutorial kali ini kita membahas tentang Konfigurasi OSPF di Cisco Packet Tracer.
Seperti biasa, Langkah awal yaitu denagn membuat jaringan sederhana...

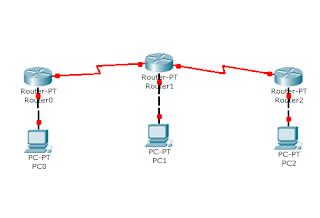

Contoh seperti gambar dibawah :


Selanjutnya,
Pemberian IP Address pada setiap PC...
-  Pemberian IP  PC0 :
IP Adress      : 180.19.9.3
subnet mask  : 255.255.0.0
gateway        : 180.19.9.1

-  Pemberian IP  PC1 :
IP Adress      : 183.19.9.6
subnet mask  : 255.255.0.0
gateway        : 183.19.9.1


-  Pemberian IP  PC02 :
IP Adress      : 186.19.9.9
subnet mask  : 255.255.0.0
gateway        : 186.19.9.1


Langkah Ketiga,
Selanjutnya pemberikan IP Address dan Konfigurasi OSPF pada setiap router .
Contoh sebagai berikut :

Pemberian IP Address Router0 :

Continue with configuration dialog? [yes/no]: no


Press RETURN to get started!



Router>enable
Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#ip address 180.19.9.1 255.255.0.0
Router(config-if)#no shut

Router(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit
Router(config)#int se2/0
Router(config-if)#ip address 12.12.11.1 255.0.0.0
Router(config-if)#band 125
Router(config-if)#cl ra 125000
Router(config-if)#no shut

%LINK-5-CHANGED: Interface Serial2/0, changed state to down
Router(config-if)#exit
Router(config)#exit
Router#
%SYS-5-CONFIG_I: Configured from console by console
wr
Building configuration...
[OK]

Konfigurasi OSPF pada Router0 :


Router(config)#router ospf 9
Router(config)#router-id 1.1.1.1
Router(config-router)#net 180.19.9.0 0.0.255.255 area 0
Router(config-router)#net 12.12.11.0 0.255.255.255 area 0
Router(config-router)#log-adjacency
Router(config-router)#exit
Router(config)#exit
Router#
%SYS-5-CONFIG_I: Configured from console by console
wr
Building configuration...
[OK]


Pemberian IP Address Router1 :

Continue with configuration dialog? [yes/no]: no


Press RETURN to get started!



Router>enable
Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#ip address 183.19.9.1 255.255.0.0
Router(config-if)#no shut

Router(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit
Router(config)#int se2/0
Router(config-if)#ip address 12.12.11.2 255.0.0.0
Router(config-if)#band 125
Router(config-if)#no shut

%LINK-5-CHANGED: Interface Serial2/0, changed state to down
Router(config-if)#exit

Router(config-if)#exit
Router(config)#int se3/0
Router(config-if)#ip address 198.168.8.1 255.255.255.0
Router(config-if)#band 125
Router(config-if)#cl ra 125000
Router(config-if)#no shut

%LINK-5-CHANGED: Interface Serial3/0, changed state to down
Router(config-if)#exit
Router(config)#exit
Router#
%SYS-5-CONFIG_I: Configured from console by console
wr
Building configuration...
[OK]
Konfigurasi OSPF pada Router1 :


Router(config)#router ospf 9
Router(config-router)#net 183.19.9.0 0.0.255.255 area 0
Router(config-router)#net 12.12.11.0 0.255.255.255 area 0
Router(config-router)#net 198.168.8.0 0.0.0.255 area 1
Router(config-router)#log-adjacency
Router(config-router)#exit
Router(config)#exit
Router#
%SYS-5-CONFIG_I: Configured from console by console
wr
Building configuration...
[OK]
Router#


Pemberian IP Address Router2 :

Continue with configuration dialog? [yes/no]: no


Press RETURN to get started!



Router>enable
Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#ip address 186.19.9.1 255.255.0.0
Router(config-if)#no shut

Router(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit
Router(config)#int se2/0
Router(config-if)#ip address 198.168.8.2 255.255.255.0
Router(config-if)#band 125
Router(config-if)#no shut

%LINK-5-CHANGED: Interface Serial2/0, changed state to down
Router(config-if)#exit



Konfigurasi OSPF pada Router2 :


Router(config)#router ospf 9
Router(config)#router-id 2.2.2.2
Router(config-router)#net 186.19.9.0 0.0.255.255 area 1
Router(config-router)#net 198.168.8.0 0.0.0.255 area 1
Router(config-router)#log-adjacency
Router(config-router)#exit
Router(config)#exit
Router#
%SYS-5-CONFIG_I: Configured from console by console
wr
Building configuration...
[OK]

Sekarang Coba Kita PING dari PC0 ke PC1 atau PC2  dan sebaliknya...
Silahkan Anda Mencoba Sendiri..
